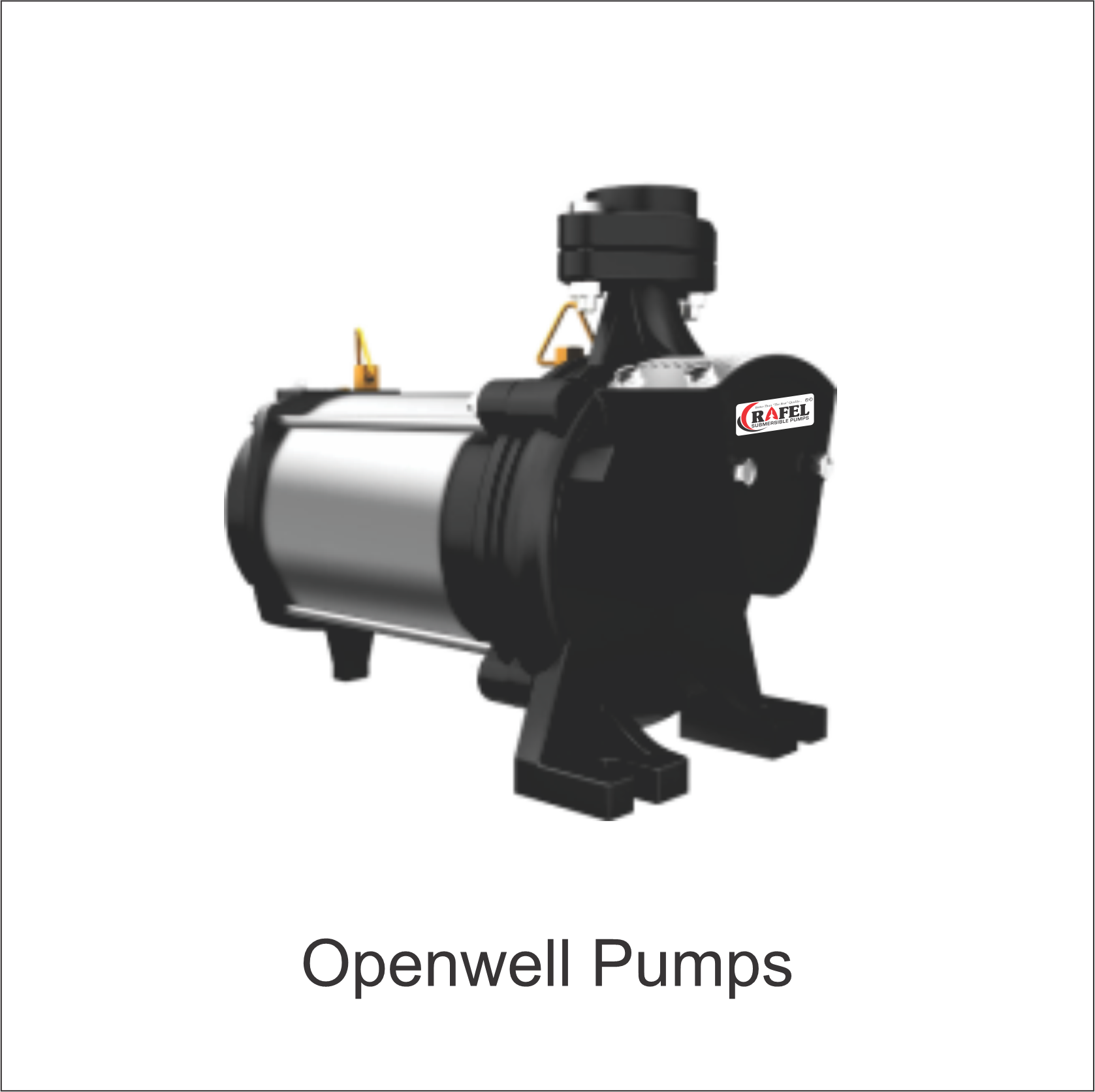

DOMESTIC MINI OPENWELL

DOMESTIC MINI OPENWELL

Salient Features :



  • Range : 3 HP to 10 HP in Three Phase
  • Suitable for Wide Voltage Fluctuation
  • Available in Aluminum and Copper Robot.
  • Best Suited for Fluctuation water level in Well / Pond / River etc.
  • Energy Efficient & Easy to maintain.
  • Robust and rugged in construction.


Applications :



  • Agriculture Irrigations / Spirnkler / Drop Application
  • Fountains.

Inquiry

Material of Constructions :



Motor Bush LTB 4 IS: 318
Thrust Bearing Carbon V/s SS
Stamping CRNO / CRC
Motor  Aluminium Die Cast / Copper
Rotot Shaft SS 410
Stator Body Cast Iron FG 200
Bowl / NRV Body  Cast Iron FG 200
Suction Housing  Cast Iron FG 200
Impellers Cast Iron FG 200
Winding Wire Poly Wrap  EC Grade Copper




MODEL M - 1



  • VOLT - 220 ( -5% +3% )

MODEL H.P. OUTLET INCH.

PRICE FOR

SINGLE PHASE

 Total Head In Meter
8 10 12 14 15 16 17 18 20 23 25
Discharge In LPM
M-51 5.00 1 × 1 5733/- 140 120 100 90 60 50 30 - - - -
M-11 1.00 1 × 1 9240/- 230 200 175 160 150 140 130 115 90 70 -
M-55 1.50 1.5 × 1.5 10290/- 300 290 280 270 265 260 250 240 220 170 133
M-22 2.00 2 × 2 12180/- - 400 380 260 350 340 325 310 280 260 200
M-32 3.00 2.5 × 2 14217/- - 550 480 460 430 410 380 350 310 200 -
M-52 5.00 2.5 × 2 15800/- - 620 580 535 495 470 450 430 390 360 340
