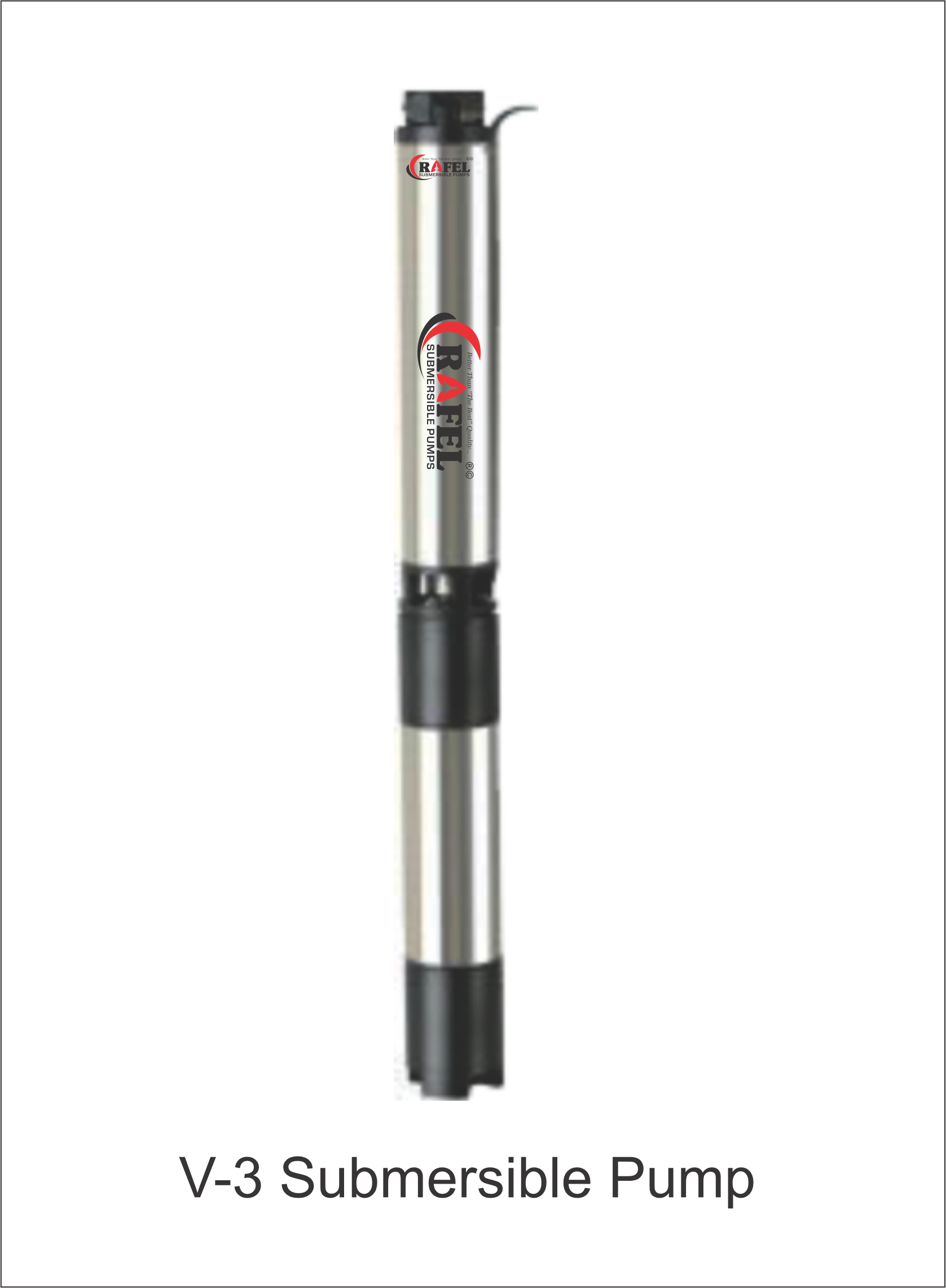

V-3 Submersible Pump set S.S Motor Booy & S.S. Body With Noryl Impeller Suitable For 80 mm Bore Dia (Pump OD 74mm)

V-3 Submersible Pump set S.S Motor Booy & S.S. Body With Noryl Impeller Suitable For 80 mm Bore Dia (Pump OD 74mm)

Salient Features :



  • Suitable for Slim bores.
  • Suitable to replace hand pumps after energization.
  • Energy Efficient & Easy to maintain.
  • Robust and rugged in construction.



Applications :



  • For Domestic Applications – Household & Restaurants
  • For Small Farm irrigations
  • Best Suitable for replacing Hand Pumps


Inquiry

Material of Constructions :



Motor Bush LTB 4 IS: 318
Thrust Bearing Carbon V/s SS
Stamping CRNO / CRC
Motor Shaft SS 410
Bowl Poly Carbonate GNF 2.25% Glass Filled
Impellers Poly Carbonate GNF 2.25% Glass Filled
Stator Body SS 304 / SS 202
Pump Body SS 202
Pump Sleeves SS 410 Hard Chromed
Pump Bush Nitrile Rubber & LTB4
Winding Wire4 Poly Wrap  EC Grade Copper




MODEL CORA - 2

  • OUTLET - 1"

  • VOLT - 220 ( -5% +3% )

  • DUTY POINT HEAD PER STG. - 3 MT.

MODEL H.P. STAGE PRICE FOR
PUMP SET		 Discharge In LPM
55 45 40 35 30 22
Total Head In Meter
V320510 0.50 10 8800/- 12 20 24 30 35 42
V327515 0.75 15 9870/- 18 29 39 45 53 64
V321020 1.00 20 11607/- 26 41 50 60 68 84
V3212526 1.25 26 13731/- 24 50 62 75 87 106
V321530 1.50 30 15283/- 60 75 82 90 97 127

MODEL CORA - 4

  • OUTLET - 1"

  • VOLT - 220 ( -5% +3% )

  • DUTY POINT HEAD PER STG. - 3 MT.

MODEL H.P. STAGE PRICE FOR
PUMP SET		 Discharge In LPM
65 55 50 45 35 25
Total Head In Meter
V3440508 0.50 8 8698/- 9 15 20 24 28 33
V347512 0.75 12 9715/- 14 25 30 36 41 50
V341015 1.00 15 11613/- 15 33 40 45 55 70
V3412520 1.25 20 13370/- 20 42 48 60 72 85
V341525 1.50 25 15015/- 24 50 62 75 87 106

MODEL CORA - 5

  • OUTLET - 1"

  • VOLT - 220 ( -5% +3% )

  • DUTY POINT HEAD PER STG. - 3 MT.

MODEL H.P. STAGE PRICE FOR
PUMP SET		 Discharge In LPM
85 75 65 55 45 30
Total Head In Meter
V350506 0.50 6 8556/- 5 9 14 18 23 25
V357508 0.75 8 9429/- 11 15 20 24 29 31
V341010 1.00 10 11229/- 17 21 26 30 35 37
