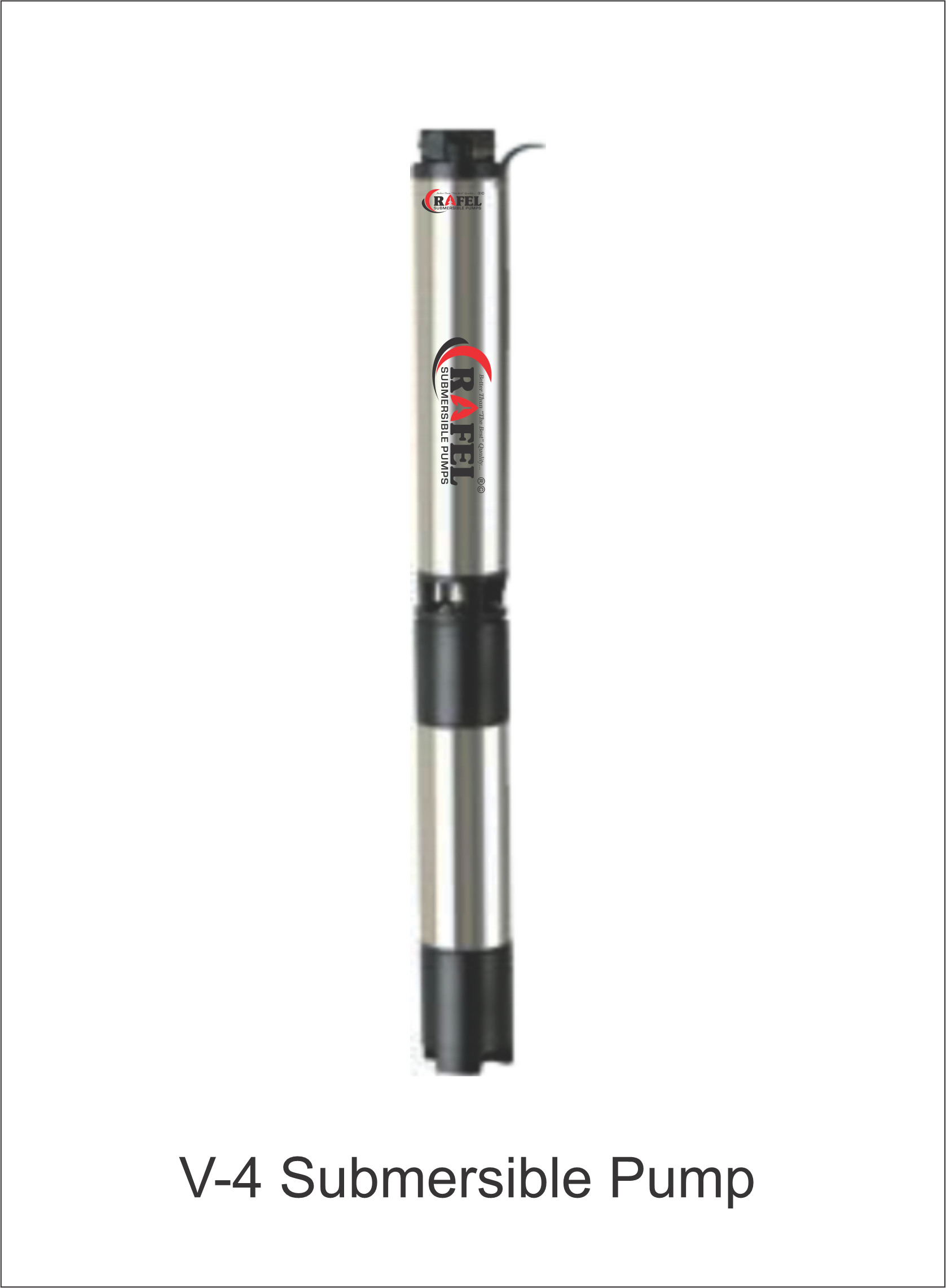

V-4 Submersible Pump set S.S Motor Booy & S.S. Body With Noryl Impeller Suitable For 100 mm Bore Dia (Pump OD 85mm)

V-4 Submersible Pump set S.S Motor Booy & S.S. Body With Noryl Impeller Suitable For 100 mm Bore Dia (Pump OD 85mm)

Salient Features :



  • Range: 0.5 HP to 5 HP in Single Phase
  • Range: 0.5 HP to 7.5 HP in Three Phase
  • Motor from 3 HP & above in open winding construction.
  • Single Phase up to 3 HP available in ISI Mark also.
  • Available in both Regular and High Head Series.
  • Available in Copper rotor only
  • Energy Efficient & Easy to maintain
  • Robust and rugged in construction.



Applications :



  • For Domestic Applications – Household & Restaurants
  • For Small Farm irrigations
  • Best Suitable for replacing Hand Pumps



Inquiry



Material of Constructions :



Motor Bush LTB 4 IS: 318
Thrust Bearing Carbon V/s SS
Stamping CRNO / CRC
Motor Shaft SS 410
Bowl Poly Carbonate GNF 2.25% Glass Filled
Impellers Poly Carbonate GNF 2.25% Glass Filled
Stator Body SS 304 / SS 202
Pump Body SS 202
Pump Sleeves SS 410 Hard Chromed
Pump Bush Nitrile Rubber & LTB4
Winding Wire4 Poly Wrap  EC Grade Copper




MODEL CORA - 1

  • OUTLET - 1"

  • VOLT - 220/415 ( -5% +3% )

  • DUTY POINT HEAD PER STG. - 4 MT.

MODEL H.P. STAGE

PRICE FOR
 SINGLE PHASE

PRICE FOR
 THREE PHASE

 Discharge In LPM
75 65 55 45 42 35 30
Total Head In Meter
V410510 0.50 10 10276/- -------- 10 20 30 40 45 50 60
V4107515 0.75 15 11848/- -------- 15 30 45 60 67 75 90
V411018 1.00 18 14415/- 13915/- 18 36 54 72 81 90 108
V411020 1.00 20 14480/- 13970/- 20 38 56 80 84 100 120
V411525 1.50 25 19220/- 18715/- 25 50 75 100 112 127 150
V412030 2.00 30 21545/- 21030/- 30 60 90 120 135 150 180
V413035 3.00 35 26233/- 25718/- 35 70 105 140 157 175 210
V415045 5.00 45 ---------- 29770/- 45 90 135 180 202 225 270

MODEL CORA - 2

  • OUTLET - 1.25"

  • VOLT - 220/415 ( -5% +3% )

  • DUTY POINT HEAD PER STG. - 4 MT.

MODEL H.P. STAGE

PRICE FOR
 SINGLE PHASE

PRICE FOR
 THREE PHASE

 Discharge In LPM
95 80 70 60 55 48 40
Total Head In Meter
V420508 0.50 8 9699/- -------- 11 18 26 32 35 39 47
V427510 0.75 10 10935/- -------- 12 22 32 42 47 52 62
V427512 0.75 12 11296/- -------- 14 26 38 50 56 62 74
V421015 1.00 15 14105/- 13615/- 18 33 48 63 70 78 93
V421520 1.50 20 18832/- 18292/- 24 44 64 84 94 104 124
V422025 2.00 25 21095/- 20515/- 30 55 80 105 117 130 155
V423030 3.00 30 25629/- 25079/- 36 66 96 126 141 156 186
V425040 5.00 40 ---------- 29264/- 48 88 128 168 188 208 248

MODEL CORA - 4

  • OUTLET - 1.25"

  • VOLT - 220/415 ( -5% +3% )

  • DUTY POINT HEAD PER STG. - 4 MT.

MODEL H.P. STAGE

PRICE FOR
 SINGLE PHASE

PRICE FOR
 THREE PHASE

 Discharge In LPM
115 105 95 75 70 60 50
Total Head In Meter
V440506 0.50 6 9580/- -------- 8 13 18 24 28 32 36
V447508 0.75 8 10825/- -------- 10 17 26 32 38 40 45
V441010 1.00 10 12245/- 11755/- 12 22 32 42 47 52 62
V441012 1.00 12 13950/- 13450/- 14 26 38 50 56 62 74
V441515 1.50 15 18600/- 18090/- 18 33 48 63 70 78 93
V442020 2.00 20 20619/- 20100/- 24 44 64 84 94 104 124
V443025 3.00 25 25316/- 24776/- 30 55 80 105 117 130 155
V445035 5.00 35 ---------- 28822/- 40 77 112 147 164 182 217

MODEL CORA - 5

  • OUTLET - 1.5"

  • VOLT - 220/415 ( -5% +3% )

  • DUTY POINT HEAD PER STG. - 4 MT.

MODEL H.P. STAGE

PRICE FOR
 SINGLE PHASE

PRICE FOR
 THREE PHASE

 Discharge In LPM
145 125 105 95 85 75 55
Total Head In Meter
V457506 0.75 6 11184/- -------- 6 12 18 24 28 32 36
V451008 1.00 8 12090/- 11600/- 10 16 24 32 35 38 42
V451512 1.50 12 18414/- 17914/- 12 24 36 48 54 60 66
V452015 2.00 15 20470/- 19920/- 15 30 45 60 67 75 82
V453020 3.00 20 25179/- 24629/- 20 40 60 80 90 100 110
V455030 5.00 30 -------- 28489/- 30 60 90 120 135 150 165

MODEL CORA - 7

  • OUTLET - 1.5"

  • VOLT - 220/415 ( -5% +3% )

  • DUTY POINT HEAD PER STG. - 4 MT.

MODEL H.P. STAGE

PRICE FOR
 SINGLE PHASE

PRICE FOR
 THREE PHASE

 Discharge In LPM
155 135 115 105 95 85 75
Total Head In Meter
V471510 1.50 10 18135/- 17645/- 10 20 30 40 45 50 55
V472012 2.00 12 20277/- 19757/- 12 24 36 48 54 60 66
V473015 3.00 15 24924/- 24400/- 15 30 45 60 67 75 82
V475025 5.00 25 --------- 28272/- 25 50 75 100 112 125 137

MODEL CORA - 10

  • OUTLET - 2"

  • VOLT - 220/415 ( -5% +3% )

  • DUTY POINT HEAD PER STG. - 4 MT.

MODEL H.P. STAGE

PRICE FOR
 SINGLE PHASE

PRICE FOR
 THREE PHASE

 Discharge In LPM
195 175 150 135 115 100 70
Total Head In Meter
V4101005 1.00 5 11857/- 11367/- 5 10 15 20 22 25 27
V4101508 1.50 8 17995/- 17485/- 8 16 24 32 36 40 44
V4102010 2.00 10 20167/- 19647/- 10 20 30 40 45 50 55
V4103012 3.00 12 24722/- 24208/- 12 24 36 48 56 60 66
V4105020 5.00 20 -------- 28086/- 20 40 60 80 90 100 110

MODEL CORA - 12

  • OUTLET - 2"

  • VOLT - 220/415 ( -5% +3% )

  • DUTY POINT HEAD PER STG. - 4 MT.

MODEL H.P. STAGE

PRICE FOR
 SINGLE PHASE

PRICE FOR
 THREE PHASE

 Discharge In LPM
245 215 195 165 145 135 115
Total Head In Meter
V4121506 1.50 6 17925/- 17315/- 6 12 18 24 30 35 38
V4122008 2.00 8 19929/- 19410/- 8 16 24 32 36 40 48
V4123010 3.00 10 24645/- 24105/- 10 20 30 40 45 50 55
V4125015 5.00 15 --------- 27838/- 15 30 45 60 67 75 82

MODEL CORA - 18

  • OUTLET - 2"

  • VOLT - 220/415 ( -5% +3% )

  • DUTY POINT HEAD PER STG. - 4 MT.

MODEL H.P. STAGE

PRICE FOR
 SINGLE PHASE

PRICE FOR
 THREE PHASE

 Discharge In LPM
365 315 265 225 185 155 95
Total Head In Meter
V4181505 1.50 5 17592/- 17080/- 5 10 15 18 23 26 29
V4182007 2.00 7 19950/- 19430/- 7 14 21 25 29 32 36
V4183009 3.00 9 24945/- 24405/- 9 18 27 32 38 42 47
V4185014 5.00 14 --------- 27610/- 14 28 42 49 56 65 42
